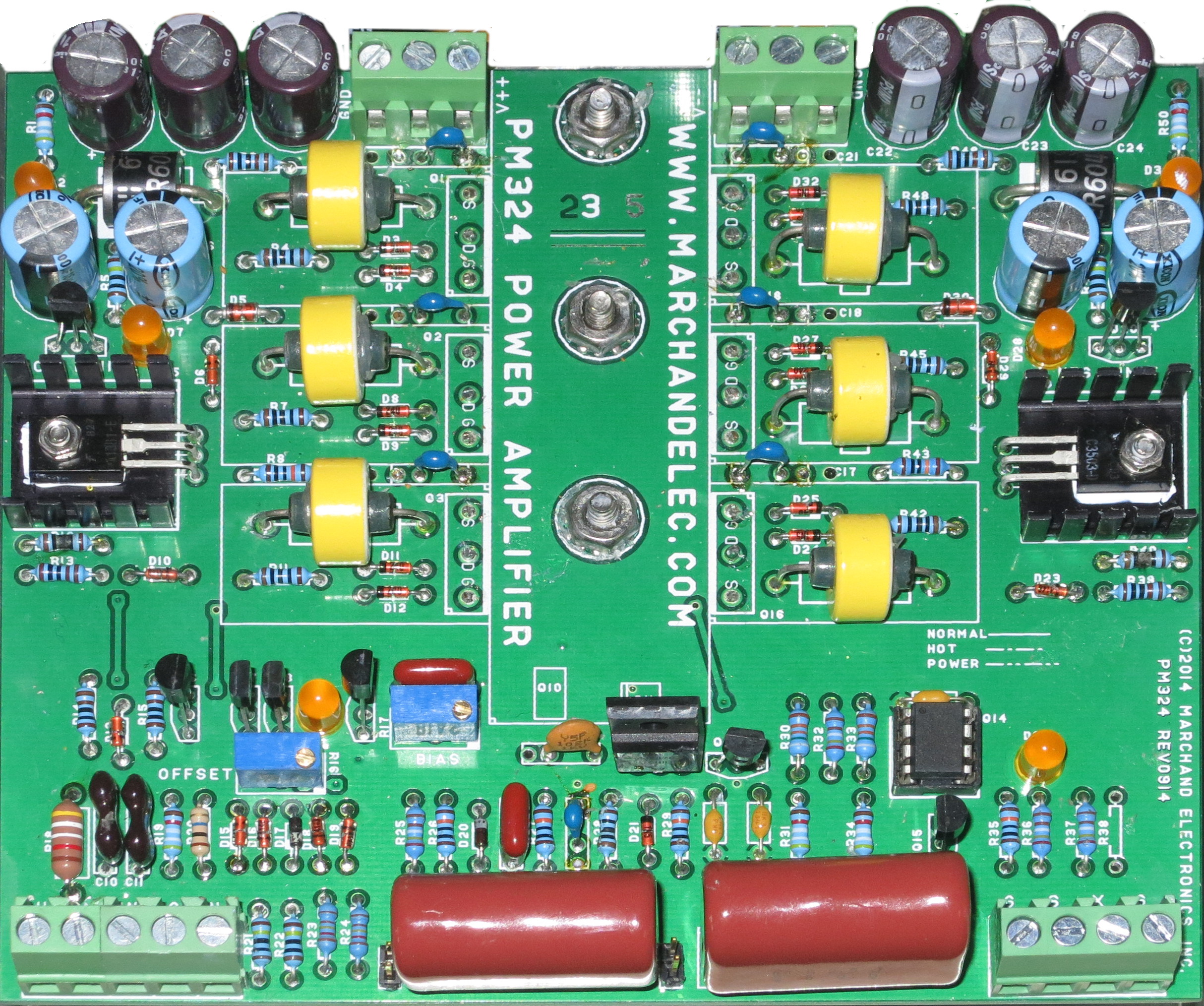

PM324: 200 Watt RMS into 8 Ohm or 4 Ohm.
PM324HV: 100 Watt RMS.
All MOSFET design.
Better than 0.01% distortion at 1 KHz.
Differential (Balanced) or Single Ended Inputs.
AC or DC Coupling (jumper selectable)..
Specifications PM324:
This amplifier is suited for high performance audio amplifier applications.
Frequency response: 10Hz - 20KHz +/- 1dB (AC coupled)
DC
- 20KHz +/- 1dB (DC coupled)
Slew
rate: 25V/us
THD at 1KHz:
better
than 0.01%;
Voltage gain: 32
dB
(40x),
non inverting or inverting;
Input impedance: 25 KOhm, AC or DC
coupled.
Output load:
4
or 8 Ohm, DC coupled.
Max. output current: 12A
Max power output: 200 Watt RMS , continuous,
into
8 Ohm
(using +/-65V power supply)
200
Watt
RMS
, continuous, into 4 Ohm (using +/-50V power supply)
Power supply voltage range: +/- 20 Volt to +/- 65 Volt
Dimensions: 5.5" X 4.8" X 1.6 "
Specifications PM324HV:
This amplifier is suited for high voltage amplifier applications, for audio and general purpose amplifier use.
Frequency response: 10Hz - 20KHz +/- 1dB (AC coupled)
DC
- 20KHz +/- 1dB (DC coupled)
THD at 1KHz:
better
than 0.01%;
Voltage gain: 32
dB
(40x),
non inverting or inverting;
Input impedance: 25 KOhm, AC or DC
coupled.
Max. output current: 0.7A
Max power output: 50 Watt RMS
Power supply voltage range: +/- 20 Volt to +/- 200 Volt
Dimensions: 5.5" X 4.8" X 1.6 "
Ordering Information:
PM324-A Power amplifeir module
PM324HV-A High voltage Power amplifeir module
PM324-HS Custom Heatsink
