MB401 Monoblock MOSFET Audio Power Amplifier

300 Watt RMS into 8 Ohm.
400 Watt RMS into 4 Ohm.
All MOSFET design.
High Current Capability.
Stable with ANY load.
Better than 0.02% distortion at 1 KHz.
Class A bias option available
Balanced and Single Ended Inputs
Heavy duty toroidal power transformer
Thermal overload protection
Current overload protection

The MB401 MOSFET power amplifier is rated at 300WRMS. The amplifier has a balanced(XLR) and single-ended (RCA) input. The output uses heavy duty 5-way binding posts. The power supply uses a heavy duty 500 VA toroidal power transformer and large capacitors, totalling 85,000 uF.

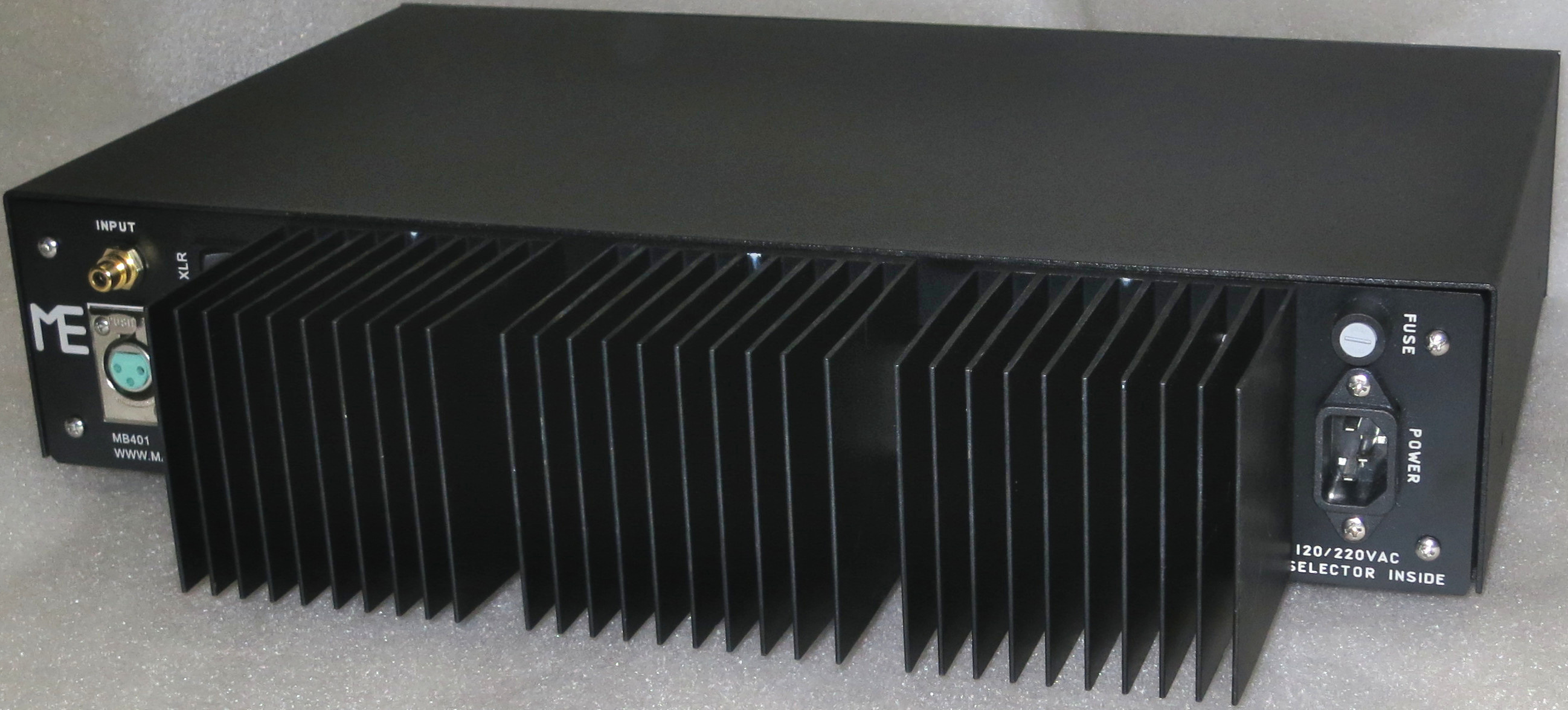

The MB401 construction is very rugged. It is housed in a strong aluminum chassis. A large heatsink on the rear of the cabinet dissipates the heat generated by the amplifier. A thermal cutout mounted on the heatsink shuts the amplifier off in case it gets too hot.
The class A option offers even better sound quality at the cost of reduced output power.

Specifications:
Frequency response                  10Hz to 20 KHz, +/ -1 dB
Harmonic distortion @ 1KHz, 1W      0.02% or better
Voltage gain                        26dB (20X )
Slew rate                           100V/uS
Input impedance                     50K
Max Peak Output Current             50A
Output Load                         4-8 Ohm typical, stable with any load
Max power output (standard)         300W into 8 Ohm,    400W into 4 Ohm
Max power output (class A)          40W into 8 Ohm,      25W into 4 Ohm
Dimensions                          17" x 3.5"" x 12.5"" (WxHxD)"
Weight                              25 lbs (11Kg)
Power requirement                   120VAC, 6A fuse
Construction                        All metal cabinet, black with white legend

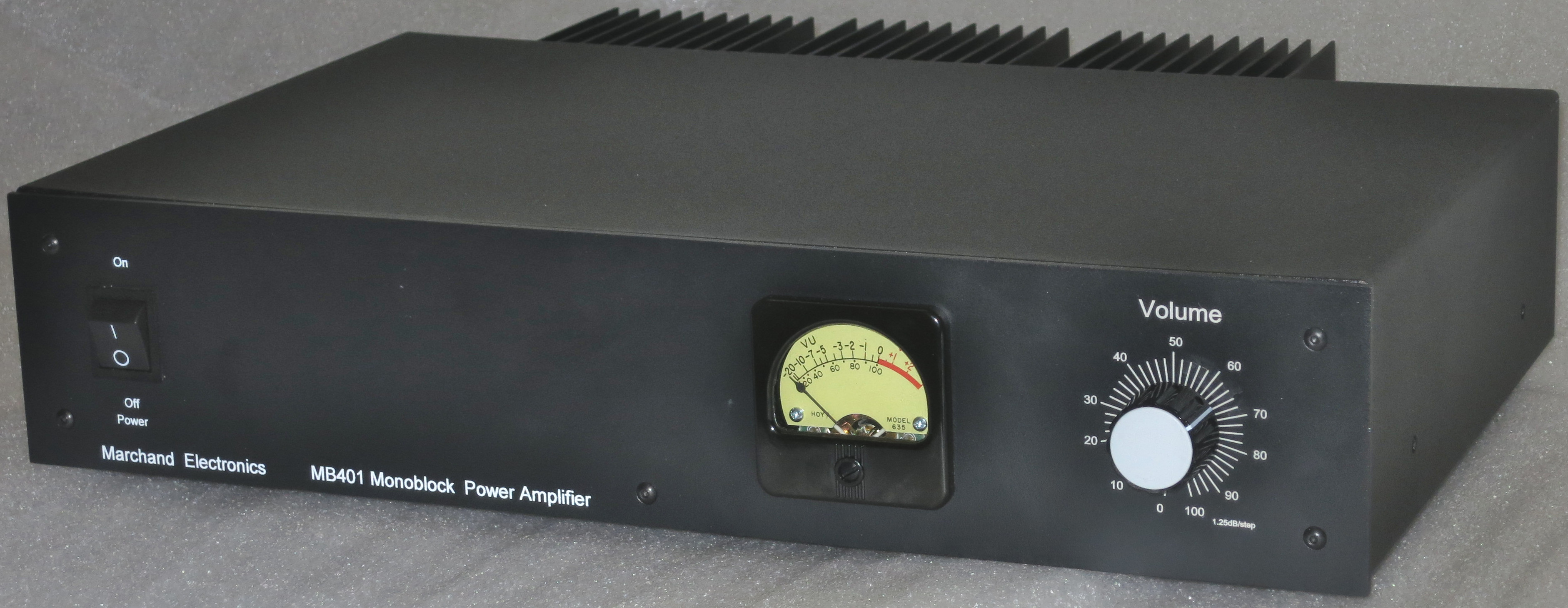

Front panel:
On/Off switch

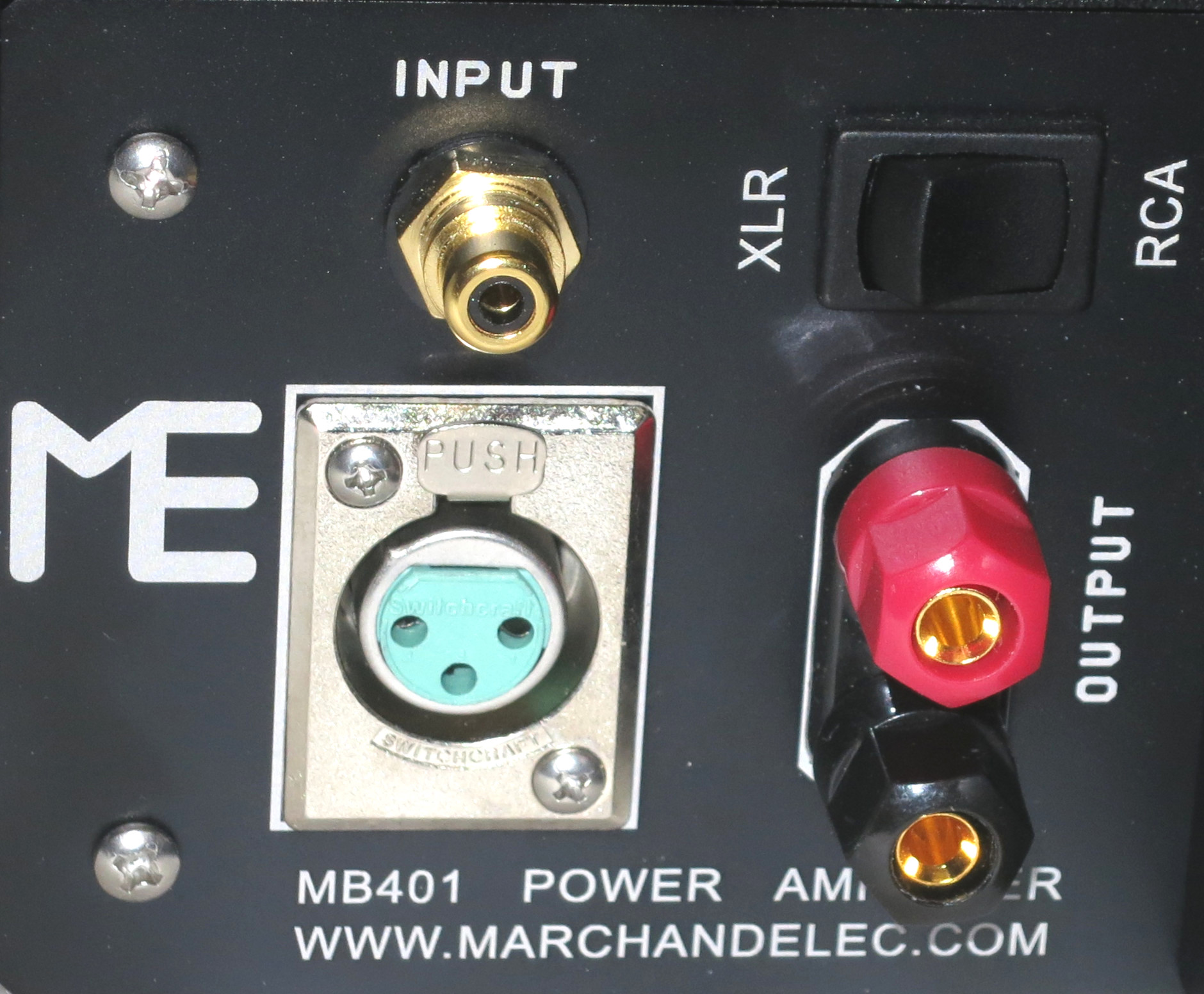

Rear Panel:
Power entry connector
Fuse
Output connectors (Binding posts)
Single ended input connectors (RCA)
Balanced input connectors( XLR)
Balanced/Single ended switch
Options:
220/240VAC line power input.
Ordering Information:
MB401-AA         Mono Amp, Fully assembled and tested
MB401-KK         Mono Amp, Kit with manual and all parts
MB401-EZK        Mono Amp, EZ Kit with manual and all parts

Option 220V      220/240VAC line power input
Option class A   Class A amplifier bias
